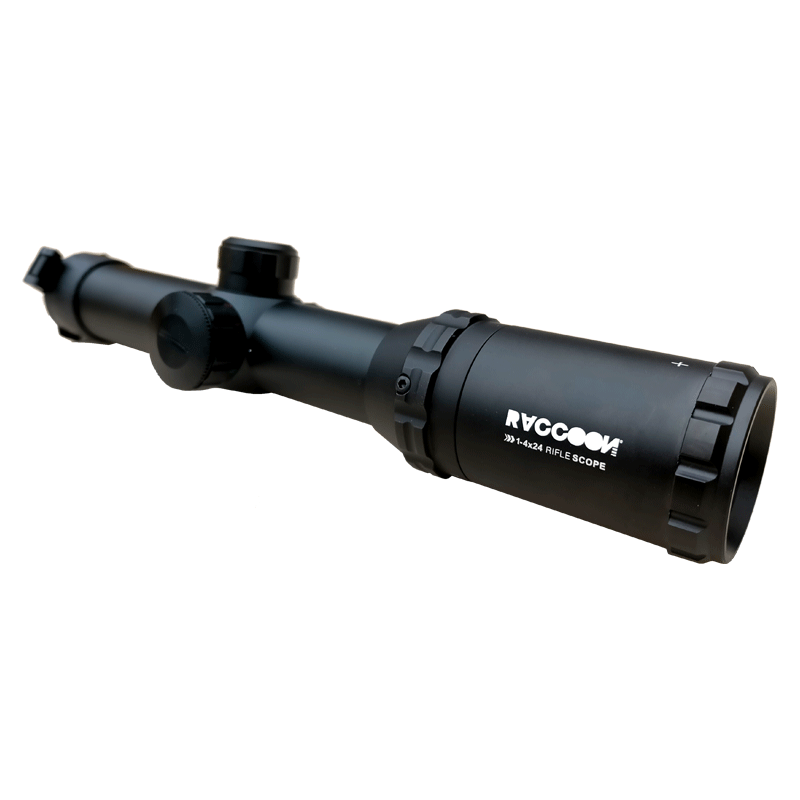

Racoon 1-4x24 Scope

The Racoon 1-4x24 is a versatile, robust LPVO riflescope (Low Power Variable Optic) made of hard-wearing matt black aluminium. With variable magnification from 1x to 4x, it works as a hybrid between a fast red dot sight and a traditional riflescope. It is a good choice for airsoft players and shooters moving between close CQB environments and medium distances in woodland, where fast target acquisition and flexibility are crucial.

Illuminated reticle, micrometric turrets and complete accessory pack. The scope's technical design and features give you good conditions in all light:

• Variable magnification and wide field of view: The scope offers adjustable 1-4x magnification with a 24 mm objective. It gives a very wide field of view (FOV) of 112 at 1x for maximum overview at short range, narrowing to 25.5 at 4x for precise shots at distance.
• Two-colour illuminated reticle: The built-in reticle can be illuminated in both RED and GREEN, making it easy to aim against dark backgrounds or in low light. The system is powered by a standard CR2032 battery, which is included.
• Precise micrometric turrets: Adjustment is made via sensitive micrometric precision turrets under protective caps. The click value is 0.12'' at 50 yards, allowing very accurate elevation and windage adjustment.
• Complete mounting kit and fog protection: The scope has a 25.4 mm tube diameter and comes complete with matching scope rings for standard 21 mm Picatinny/Weaver rails. A practical dust cover with a yellow-tinted lens is also included, which is particularly effective at increasing contrast and visibility in fog or haze.

Instructions and setup:

• Use and focus: Position the scope 75–100 mm from your eye (eye relief). If the reticle is not completely sharp, turn the focus ring on the eyepiece until it is fully in focus.
• Mounting: Fit the scope rings to your 21 mm rail. Make sure the reticle is completely level before finally tightening the top screws. Then check that the whole scope sits firmly on the rifle.
• Zeroing: Aim at a target 50 m away. Remove the turret caps and fine-tune the clicks relative to your point of impact until the scope is zeroed.

Specifications:

• Brand: Racoon
• Model: 1-4x24 LPVO riflescope
• Magnification: 1x to 4x (variable)
• Objective diameter: 24 mm (aperture)
• Tube diameter: 25.4 mm (1 inch)
• Material: Hard-wearing aluminium
• Colour: Matt black
• Reticle illumination: Red / green
• Battery type: CR2032 (included)
• Field of view (FOV): 112 at 1x / 25.5 at 4x
• Click value: 0.12'' @ 50 yards (micrometric turrets)
• Mount type: 21 mm rail (scope rings included)
• Length: 250 mm
• Weight: 504 g

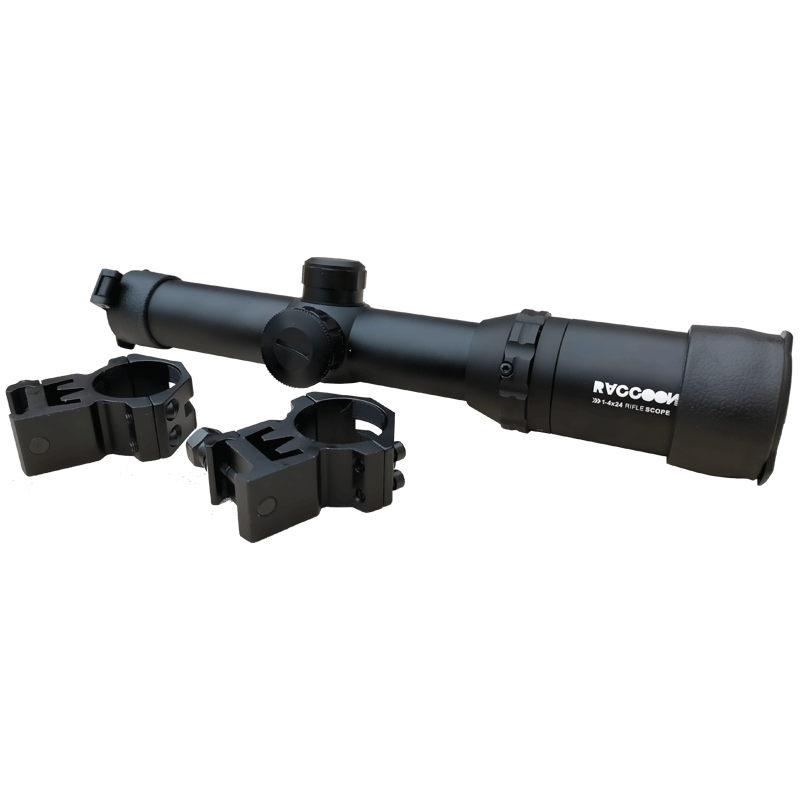

Package contents:

• Racoon 1-4x24 riflescope
• 21 mm scope rings
• CR2032 battery
• Durable dust cover with yellow fog lens
• Manual
