M4/AR15-AEG'er og LMG'er med standard V2-gearboks og motor med lang aksel. Kittet har et 310 mm inderløb. Kræver et 11,1 V LiPo på mindst 3500 mAh.
High-Speed M140+ Build Kit for M4 AEG (V2 Gearbox)
Undgår highspeed-effekter via fjederkraft. Typisk LMG-build med kraftigere gearbokshus og mere batteriplads. Høj belastning og varme.
Site limit: FA ≤ 129,9 m/s
Cheaper than buying the 11 parts separately.
In stock in Aulum, Denmark – 1 sets
Cheaper than buying the 11 parts separately.
In stock in Aulum, Denmark – 1 sets
Protects the trigger contacts and gives a crisper trigger response. Skip this if your gun already has one.
Fitting costs a fixed 500 kr and is paid together with the kit. Turnaround is 2–3 weeks from when we receive your gun. If any of your gun's original parts are worn, we'll contact you before replacing anything.
- 2-year warranty on new parts
- Chronograph reading in m/s when fitted

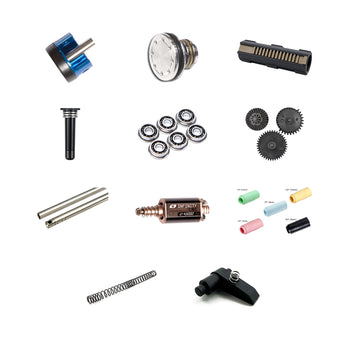

What's in your kit
Click a part to read more about it.
-
PartUltimate Cylinder Head, V2
109 kr
-
PartGuarder Aluminium Piston Head, V2/V3
139 kr
-
PartBalystiK 14-Tooth Piston
89 kr
-
PartUltimate Spring Guide Ver.2
149 kr
-
ARLCNC Anti-Reversal Latch for RA V2 GearboxHandles the higher loads and speeds of the build
89 kr
-
PartCeramic Bearings, 8 mm, 6 pcs
369 kr
-
Gear setBalystiK CNC 18:1 Gear SetSets rate of fire and load – matched to the motor and spring
199 kr
-
PartMaple Leaf AEG Inner Barrel, 310 mm
279 kr
-
MotorUltimate Infinity CNC U-45000 Motor, LongDelivers torque to the gears – chosen for the build's rate of fire
599 kr
-
Hop-up buckingMaple Leaf Super Macaron AEG Hop-Up BuckingConsistent lift for the build's BB weight
89 kr
-
PartSpring, M140
39 kr
-
PartUltimate Cylinder Head, V2
109 kr
-
PartGuarder Aluminium Piston Head, V2/V3
139 kr
-
PartBalystiK 14-Tooth Piston
89 kr
-
PartUltimate Spring Guide Ver.2
149 kr
-
ARLCNC Anti-Reversal Latch for RA V2 GearboxHandles the higher loads and speeds of the build
89 kr
-
PartCeramic Bearings, 8 mm, 6 pcs
369 kr
-
Gear setBalystiK CNC 18:1 Gear SetSets rate of fire and load – matched to the motor and spring
199 kr
-
PartMaple Leaf AEG Inner Barrel, 310 mm
279 kr
-
MotorUltimate Infinity CNC U-45000 Motor, LongDelivers torque to the gears – chosen for the build's rate of fire
599 kr
-
Hop-up buckingMaple Leaf Super Macaron AEG Hop-Up BuckingConsistent lift for the build's BB weight
89 kr
-
PartSpring, M150
35 kr
How fitting works
Turnaround is 2–3 weeks from when we receive your gun.
- Order the kit and fittingEnter your gun model and gearbox, and tick the box about the right of withdrawal.
- Drop off or send your gunAt our shop in Aulum, Denmark, or with a shipping label. Return shipping is free.
- We build and measureShimming, AOE, lubrication, chronograph reading in m/s with your BB weight, and test firing.
- Get your gun backFixed price 500 kr, paid when you order. We return it free of charge, or you can collect it from the shop.
About the kit
The M140+ kit takes the opposite approach to the short high-speed builds: the high rate of fire comes from a strong spring in the M140–M150 class combined with a 45K motor and an 18:1 gear set. The piston has time to cycle fully with a full stroke, and the build avoids the typical high-speed problems.
The build suits powerful setups and LMG-style use with heavy 0.32–0.36 g BBs, where the spring force is put to best use. Load and heat are high, so bearings, latch and hop-up are part of the kit, and a MOSFET/ETU is recommended. You can fit the kit yourself, or let our workshop assemble, shim and test it. When we fit it, we chronograph the velocity and record m/s and BB weight, so the gun stays within the site's limits.
Full stroke, strong spring and heavy BBs
- BalystiK CNC 18:1 gear set: The standard ratio provides the torque needed to pull M140–M150 with a full stroke when combined with a 45K motor.
- Ultimate Infinity CNC U-45000: The high-rev motor delivers the rate of fire, so the gearing can stay at 18:1 and the gearbox is loaded evenly.
- CNC ARL and MOSFET/ETU as an option: A strong spring causes hard stops, so the kit has a CNC latch that can take it. The high current also calls for a MOSFET/ETU to protect the contacts. It is not included in the kit, because many players already have one – if you need one, you can add the E-Shooter Kestrel V2, Jefftron Scylla V2 or Jefftron Leviathan V2 (premium with its own trigger).
- 310 mm inner barrel and Maple Leaf Super Macaron: A longer barrel suits the air volume of a full stroke, and the hop-up bucking is chosen to lift heavy BBs consistently.
- Ceramic 8 mm bearings: Lower friction and less heat under the high load of the build.
Maintenance and safety
- Fitting requires disassembly of the gearbox, shimming and correct lubrication. If you haven't done it before, we recommend having it fitted in our workshop
- Always measure velocity with a chronograph after fitting, and stay within the site's limits for your type of replica
- Use an 11.1 V LiPo battery with a suitable discharge rating, and always charge with a balance charger in a LiPo safety bag
- Clean the barrel and hop-up regularly, and inspect the gearbox after a season with many game days
- Always wear approved eye protection during play and testing
