M4/AR15-AEG'er med standard V2-gearboks og motor med lang aksel. Kittet har et 250 mm inderløb – det korte løb er en del af highspeed-opsætningen.
High-Speed M100 Build Kit for M4 AEG (V2 Gearbox) – Full Auto
Ren fuldauto-build med høj kadence.
Site limit: FA ≤ 129,9 m/s
Cheaper than buying the 10 parts separately.
In stock in Aulum, Denmark – 1 sets
Cheaper than buying the 10 parts separately.
In stock in Aulum, Denmark – 1 sets
Protects the trigger contacts and gives a crisper trigger response. Skip this if your gun already has one.
Fitting costs a fixed 500 kr and is paid together with the kit. Turnaround is 2–3 weeks from when we receive your gun. If any of your gun's original parts are worn, we'll contact you before replacing anything.
- 2-year warranty on new parts
- Chronograph reading in m/s when fitted

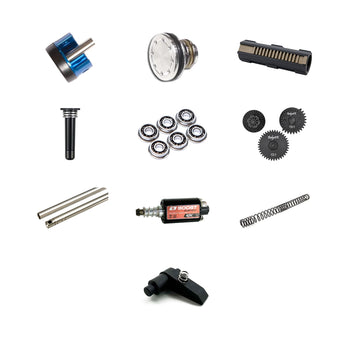

What's in your kit
Click a part to read more about it.
-
PartUltimate Cylinder Head, V2
109 kr
-
PartGuarder Aluminium Piston Head, V2/V3
139 kr
-
PartBalystiK 14-Tooth Piston
89 kr
-
PartUltimate Spring Guide Ver.2
149 kr
-
ARLCNC Anti-Reversal Latch for RA V2 GearboxHandles the higher loads and speeds of the build
89 kr
-
PartCeramic Bearings, 8 mm, 6 pcs
369 kr
-
Gear setBalystiK CNC 13:1 Gear SetSets rate of fire and load – matched to the motor and spring
199 kr
-
PartMaple Leaf AEG Inner Barrel, 250 mm
239 kr
-
MotorUltimate BOOST Motor, 40K, Long ShaftDelivers torque to the gears – chosen for the build's rate of fire
349 kr
-
PartSpring, M110
35 kr
-
PartUltimate Cylinder Head, V2
109 kr
-
PartGuarder Aluminium Piston Head, V2/V3
139 kr
-
PartBalystiK 14-Tooth Piston
89 kr
-
PartUltimate Spring Guide Ver.2
149 kr
-
ARLCNC Anti-Reversal Latch for RA V2 GearboxHandles the higher loads and speeds of the build
89 kr
-
PartCeramic Bearings, 8 mm, 6 pcs
369 kr
-
Gear setBalystiK CNC 13:1 Gear SetSets rate of fire and load – matched to the motor and spring
199 kr
-
PartMaple Leaf AEG Inner Barrel, 250 mm
239 kr
-
MotorUltimate BOOST Motor, 40K, Long ShaftDelivers torque to the gears – chosen for the build's rate of fire
349 kr
-
PartAction Army M120 Spring
129 kr
How fitting works
Turnaround is 2–3 weeks from when we receive your gun.
- Order the kit and fittingEnter your gun model and gearbox, and tick the box about the right of withdrawal.
- Drop off or send your gunAt our shop in Aulum, Denmark, or with a shipping label. Return shipping is free.
- We build and measureShimming, AOE, lubrication, chronograph reading in m/s with your BB weight, and test firing.
- Get your gun backFixed price 500 kr, paid when you order. We return it free of charge, or you can collect it from the shop.
About the kit
This High-Speed M100 kit is built for pure full auto. The kit combines a 13:1 gear set with a 40K motor and a low spring force, so the M4 delivers a high rate of fire with a smooth, predictable cycle when you hold the trigger down.
The difference from the semi version is the gearing and motor: here the build is set up for full auto, where rate of fire and a stable cycle matter more than the response to a single trigger pull. You can fit the kit yourself, or let our workshop assemble, shim and test it. When we fit it, we chronograph the velocity and record m/s and BB weight, so the gun stays within the site's limits.
Built for full auto with a high rate of fire
- 13:1 CNC gear set: The ratio gives a high rate of fire without being as short as 12:1. This gives a little more torque and a more stable cycle in full auto.
- Ultimate BOOST 40K motor: A high-rev long-shaft motor matched to the 13:1 gearing, so the rate of fire comes from the motor and not from even shorter gearing.
- CNC steel anti-reversal latch: Handles the rapid stops and starts of full auto, where a standard latch is a known weak point.
- Ceramic 8 mm bearings: Lower friction means less current draw and heat during long bursts.
- 250 mm inner barrel and M110–M120 spring: A short barrel and low spring force suit the high-speed cycle and keep the build within the full-auto limit.
Maintenance and safety
- Fitting requires disassembly of the gearbox, shimming and correct lubrication. If you haven't done it before, we recommend having it fitted in our workshop
- Always measure velocity with a chronograph after fitting, and stay within the site's limits for your type of replica
- Use an 11.1 V LiPo battery with a suitable discharge rating, and always charge with a balance charger in a LiPo safety bag
- Clean the barrel and hop-up regularly, and inspect the gearbox after a season with many game days
- Always wear approved eye protection during play and testing
